Vision Plus VP5 Digital TV Amplifier

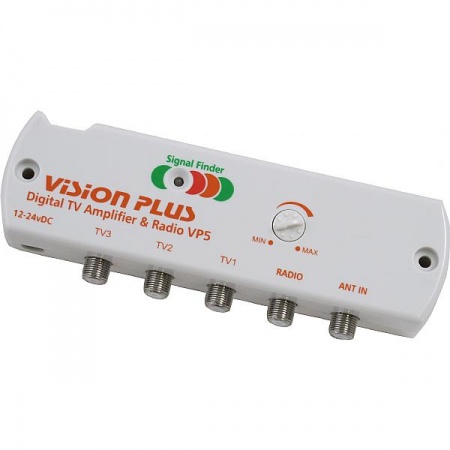

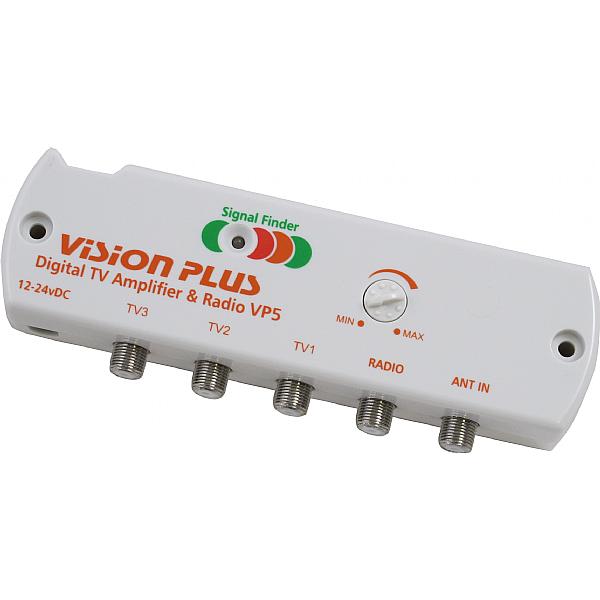

The Vision Plus VP5 Digital Amplifier is designed to enhance the performance of all non-amplified directional TV antennas. There is also a non-amplified outlet for FM Radio reception when used in conjunction with a UHF/FM antenna.

This unique product also incorporates a dedicated Signal Finder which will enable you to locate the strongest available digital TV signal. This powerful amplifier with high gain and low noise capabilities will ensure improved performance especially in poor reception areas.

Specifications:

• On/Off switch
• Variable gain control
• 3 TV outputs
• 1 FM Radio output

• Frequency Range UHF 470-862 MHz
• Frequency Range VHF 40-230 MHz
• Frequency Range FM 88-108 MHz
• Amplifier Gain Max 14dB
• Gain Adjustment 0 to ≃ 15 dB
• Flatness +1.5dB
• Noise Figure 2.2dB
• Output Impedance 75ohms
• Signal Handling 80 dBμV
• Power Supply 10.8-28v DC
• Power Consumption 95 mA
• Dimensions ( mm ): 157w x 46h x 28d

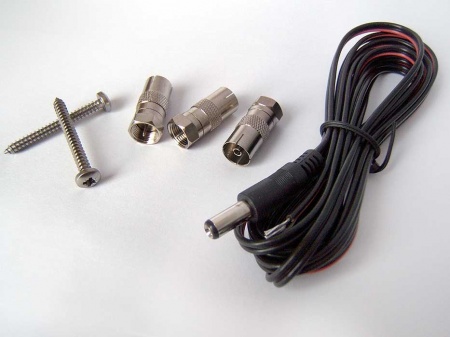

What Is Supplied: ( see photograph )

• Vision Plus VP5 TV & Radio Amplifier with Signal Finder Unit
• A lead with plug for connecting the power supply ( Please note: a power supply unit is not provided )
• Three coax to 'F' screw adaptors / convertors
• Two fixing screws

The amplifier requires a 12-24 volt power supply from a fused auxiliary outlet fed from the battery. If wiring direct to a battery VisionPlus recommend an in line fuse ( max 5A ) on the positive wire. If unsure please consult with a qualified installer.

Vision Plus VP5 Digital TV Amplifier & Signal Finder

Positioning and Fixing

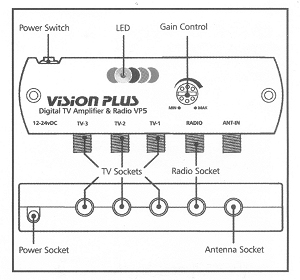

In order to boost / amplify the signal that your television receives it is necessary to fit the VP5 amplifier between your aerial / antenna and the television itself. This means that the lead coming from your aerial must first go into the amplifier using the port / socket marked 'ANT IN'. You will then take a 'flylead' from any one of the sockets marked TV1, TV2 or TV3 to the television. If you have a standard coax flylead you can use the adapters provided with the VP5 to enable the connection.

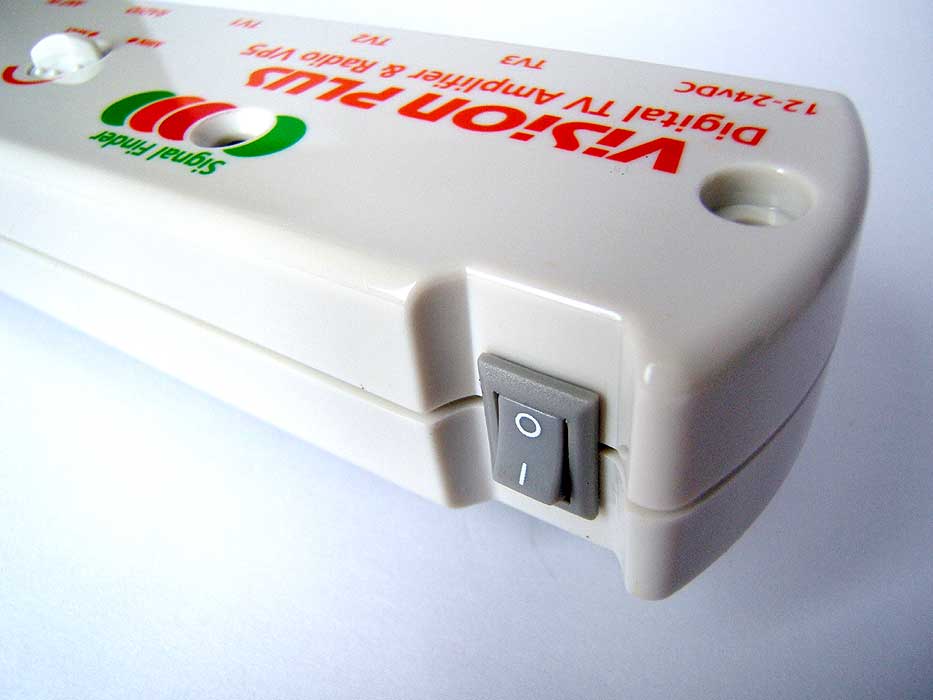

If you so desire, the VP5 can be fixed to the inside of a cupboard using the units fixing points and the fixing screws provided - but this is not absolutely necessary, it can be left to sit freely if you wish. If you do fix it, remember there is an on /off switch on the unit that you may want to have access to.

Power Source

TV Amplifier On / Off SwitchThe amplifier requires a 12-24 volt power supply and can be wired directly to the battery. However, you should note that if are planning to wire directly to the battery then an in-line fuse ( 5amp max ) must be fitted on the positive wire. Alternatively, you can use a 12v DC Mains Adapter ( not supplied )

Brief Operating Instructions for the Vision Plus VP5

These are not comprehensive instructions but a guide to give you a good idea of how the VP5 operates. When you switch on the VP5 the LED light on the top will light up. It is now a matter of rotating / moving the aerial whilst watching the signal indicator to find the direction of the best signal from the transmitter.
