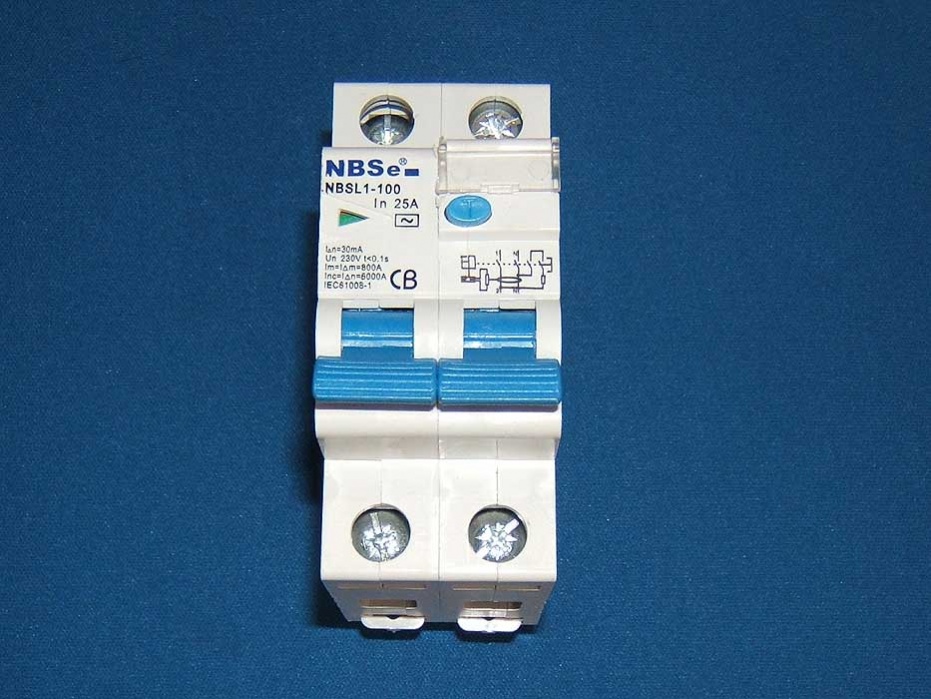

NBSe NBSL1-100 Double Pole 25 Amp Residual Current Device ( RCD ) for Caravans and Motorhomes

NBSL1-100 RCD 230/400V Rated Voltage

This is a replacement double pole ( also know as a dual pole ) RCD that suits caravan and motorhome mains consumer units.

A residual current device monitors your wiring installation permanently to detect any leaking current. How? It continuously measures the amount of current passing through a wire in one direction, and again through a different wire in the opposite direction.

The NBSL1-100 parts are made of fire resistant and shock resistant plastics and therefore it should have a long life expectancy. This product is marked as meeting the IEC61008-1 standard.

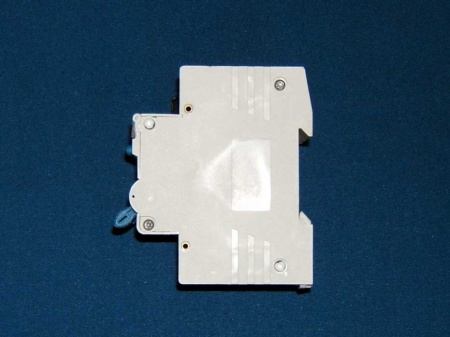

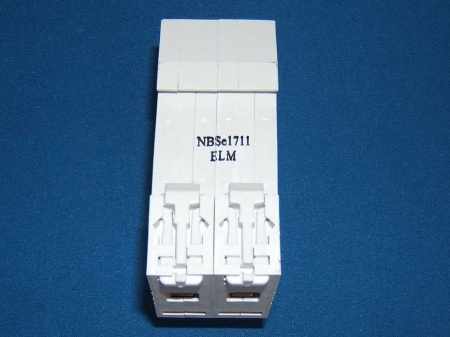

There are two rail securing clips on the rear should you wish to mount them in this way.

Key Specifications/Special Features:

• Amps: 25 Amp
• Poles: Double Pole
• Rated voltage: 230/400V
• Standards: IEC61008-1

Physical Dimensions ( approx ):

• Overall Height: 82mm
• Overall Width: 36mm
• Overall Depth: 68mm
