Isabella Minor Dawn Porch Awning

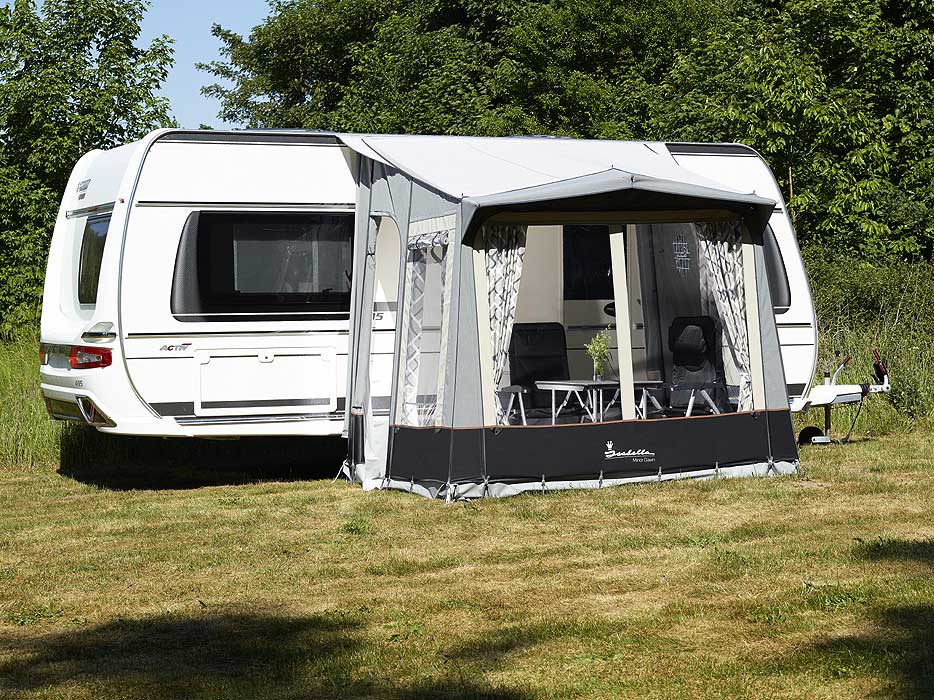

The Isabella Minor Dawn porch awning is ideal when you are not looking for a full size awning but just want to add that extra room to your caravan, with ease and speed. To add to the convenience appeal, the Minor Dawn comes with Isabella's CarbonX reinforced fibreglass poles.

The Isabella Minor dawn is suitable for fitting to caravans that have a rail height of between 235cm and 250cm and is 2 metres deep and 2.6 metres wide.

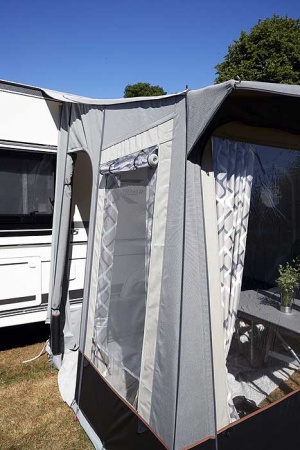

The single, large panoramic window in the front provides an excellent view out and ample natural light into the awning. It can be rolled down or the panel can be removed completely. Both side windows are provided with mosquito nets so you can open them without being concerned about letting insects into the porch. A full set of window curtains for privacy is of course included. For convenience there is a door in both sides of the porch awning.

The Isabella Minor Dawn uses Isabella's breathable Isacryl for the main awning walls. This helps to maintain a pleasant interior temperature and climate. The awning roof uses Isabella's IsaRoof Light - a UV-resistant polyester textile, treated with two layers of breathable acrylic.

The Minor Dawn comes with a number of items as standard which include, a set of curtains, a draught skirt, a wheel arch cover, FixOn, an awning bag, a pole bag, a peg bag and a peg remover.

Awning Features

• Panels: The front panel can be removed or folded down depending on your preference
• Mosquito Net: A mosquito net is provided in both sides.
• Doors: There is a door in both the left and the right side of the awning.
• Supplied As Standard With: Set of curtains, Draught Skirt, Wheel Arch Cover, FixOn, Awning Bag, Pole Bag, Peg Bag, Peg remover.

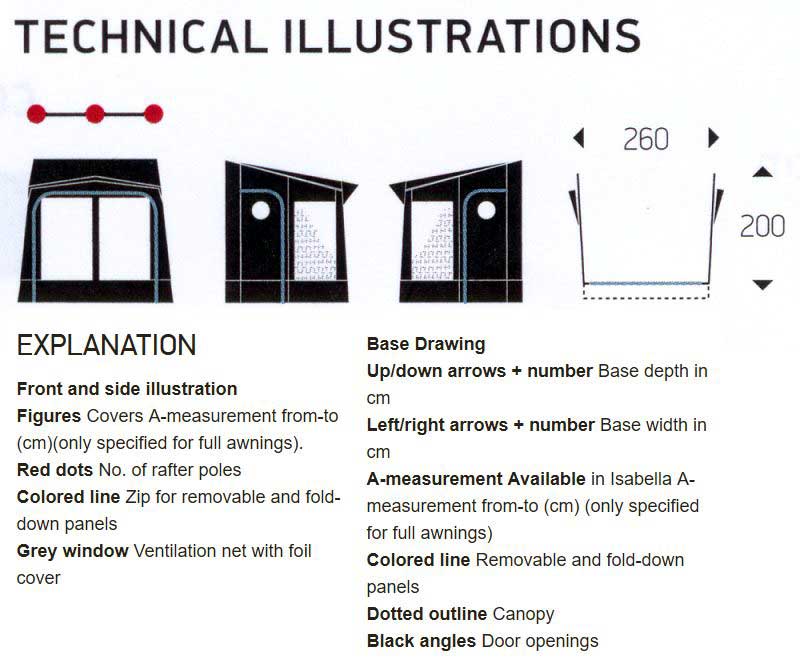

Awning Specifications

• Suitability: The Minor Dawn is suitable for caravans with a rail height of between 235 and 250cm
• Depth: 200cm
• Width: 260cm
• No.of Doors: 2
• Main Awning Material: Isacryl 295 g/m² - a spinneret-dyed ( i.e. the fibres are dyed ), textured-weave, durable acrylic material. Isacryl has the highest achievable fade-resistance thanks to the pigmentation method. The density of the weave plus the impregnation all the way through the material prevent water ingress. Nevertheless, Isacryl is a breathable material, which facilitates the best possible indoor climate in the awning.
• Roof Material: Isaroof Light 240 g/m² - a UV resistant polyester textile, treated with two layers of breathable acrylic.
• Frame Type: CarbonX - a fibreglass frame with Isafix locking clamps. Suitable for both permanent and touring caravanning. Carbon Fibres are combined with glass fibres in varying amounts, according to pole diameters, to offer maximum strength.

Isabella Poles Types

Carbon X Frame

A carbon-fibre reinforced fibreglass frame, is suitable for both permanent and touring caravanning. Carbon Fibres are combined with glass fibres in varying amounts, according to pole diameters, to offer maximum strength.

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Zinox Steel Frame

The Zinox Steel Frame is hot galvanised both inside and out to extend its life and to meet all load bearing requirements. The steel frame is made of ISO-certified high-strength steel. The strength of the Zinox steel frame makes it particularly suitable for pitching your caravan permanently - and it is included with all All-in-One and winter part awnings, because caravanning in the off-peak seasons demands geat structural stability due to weather conditions such as strong winds and snow.

The frame is light and fully corrosion resistant. All CarbonX frames are supplied with the IsaFix locking mechanism. With IsaFix in place, keeping the frame in position is easy. With one press of the hand grip, a discreet 'click' tells you IsaFix is locked in position.

Zinox MegaFrame

The Zinox MegaFrame is a durable tubular steel frame ( material thickness: 32mm / 1.2mm ) with welded corners and double screw lock on the poles. MegaFrame is designed for year-round use with a full awning which can remain standing all year and can withstand powerful storms, snowfall and torrential rain.

The Zinox MegaFrame is supplied with two extra rafter poles, as well as one Hercules 32.5mm

Isabella Sizing Chart

To Find The Correct Awning Size For Your Caravan

Full Awnings
To find the correct size of awning for your caravan you need to find the 'A' measurement. This is often given in handbooks by the manufacturer of the caravan, but if you cannot find the 'A' measurement then you can measure it yourself.

Position the caravan on even, level ground. Measure from the ground level at a point directly below the awning rail at the front of the caravan to the ground level point directly below the awning rail at the rear of the caravan. You can do this quite easily using a piece of string or chord. This measurement will be the red line shown on the image.

Porch Awnings
Generally, you do not use the 'A' measurement for porch awnings. Instead you will want the awning rail height from ground level - shown as 'H' on the diagram. Unlike the awning rail height which is a fixed dimension, the width of the awning - shown as 'L' on the diagram is variable. Some people do not like to fix an awning across a window as shown on the left hand side of the diagram, so they would probably buy an awning either with a smaller width or wider width if room permits. Essentially the choice is yours to make.
