Bailey Discovery D4-4L

Video Tour of the Bailey Discovery D4-4L

D4-4L Specifications

• Berths: 4
• Axle Type: Single Axle
• Internal Length: 4.17m / 13′ 8″
• Shipping Length: 5.922m / 19′ 5″
• Overall Width: 2.228 m / 7 ' 4 "
• Overall Height: 2.605 m / 8 ' 6 "
• Internal Headroom: 1.960 m / 6 ' 5 "
• Tyre Sizes: 185/R14C
• MTPLM: 1082kg
• MRO: 949kg
• Total User Payload: 133kg

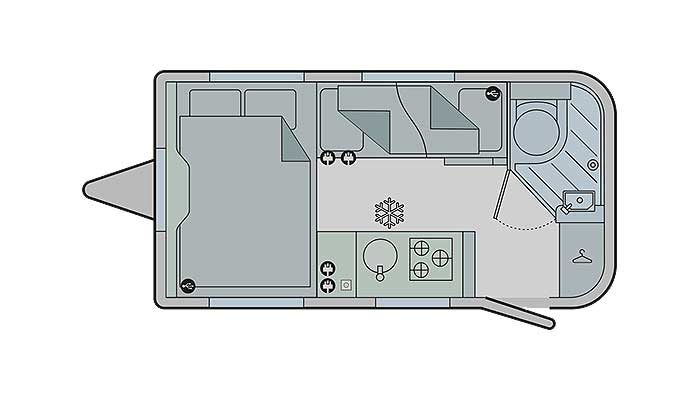

• Bed Sizes:
  Front Double:  1.88m ( 6' 2" ) x 1.35m ( 4′ 5″ ) - Measured from the widest point
  Front N/S Single:  1.35m ( 4' 5" ) x 0.62m ( 2' 0" ) - Measured from the widest point
  Front O/S Single:  1.35m ( 4' 5" ) x 0.62m ( 2' 0" ) - Measured from the widest point
  Rear O/S Single:  1.84m ( 6' 0" ) x 0.74m ( 2' 5" ) - Measured from the widest point
  Rear O/S Fold-Out Bunk: 1.73m ( 5 '8" ) x 0.62m ( 2' 0" ) - Measured from the widest point

Discovery Key Features

ALU-TECH BODYSHELL

• Structural interlocking aluminium extrusion framework with no external fixing points and concealed awning channels on both sides
• Four part fully bonded exterior panel assembly system
• Upper body panels manufactured using superior bead application laminating technology for a stronger more consistent bond
• Upper body panels built using a timber free construction, incorporating a composite plastic internal skeleton, a high density polystyrene insulation and a GRP inner wall lining
• Upper body panels cloaked in a single sheet impact resistant GRP outer skin for extra durability
• EN-1645 Grade III classification for heating and thermal insulation ( cold chamber tested )

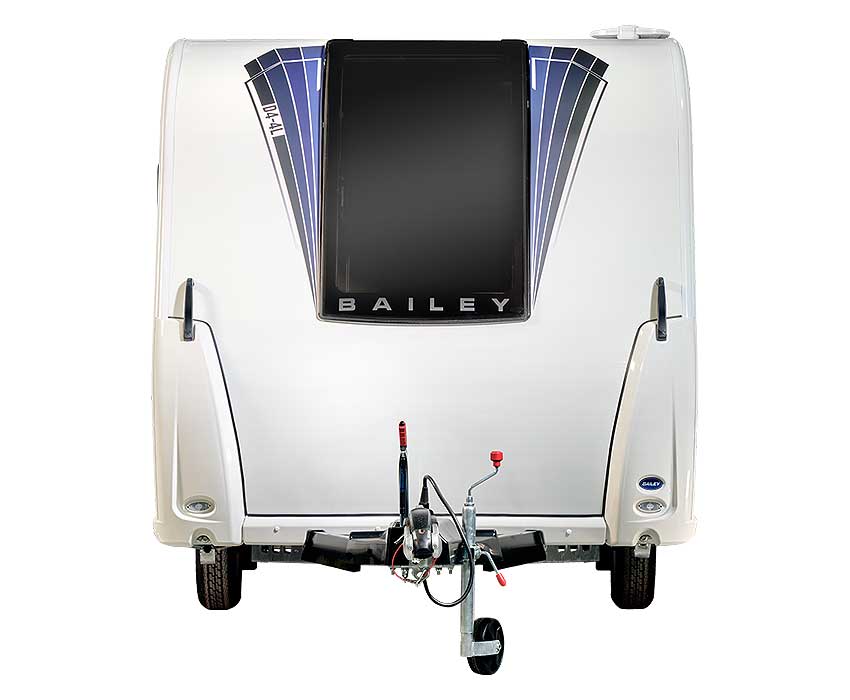

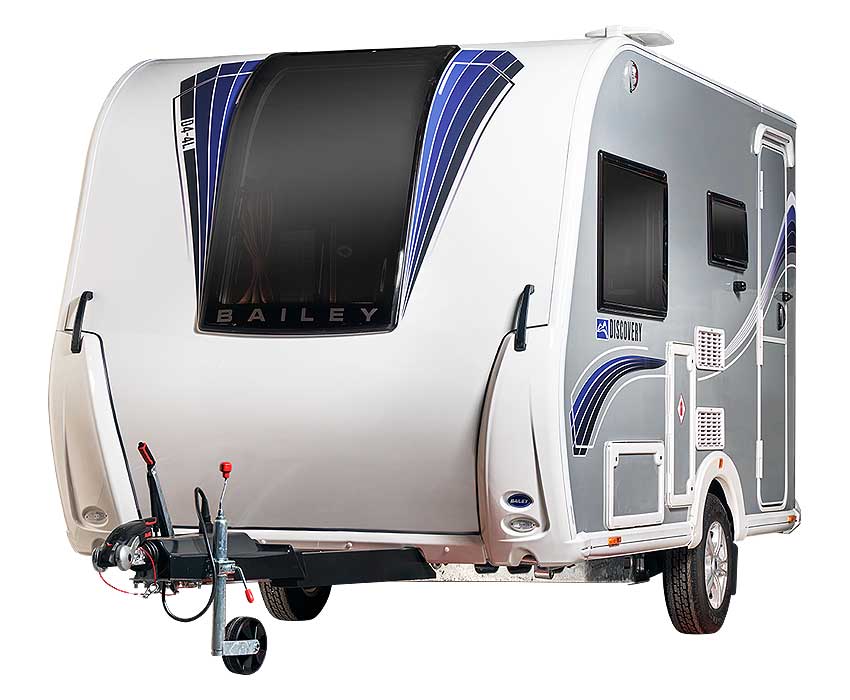

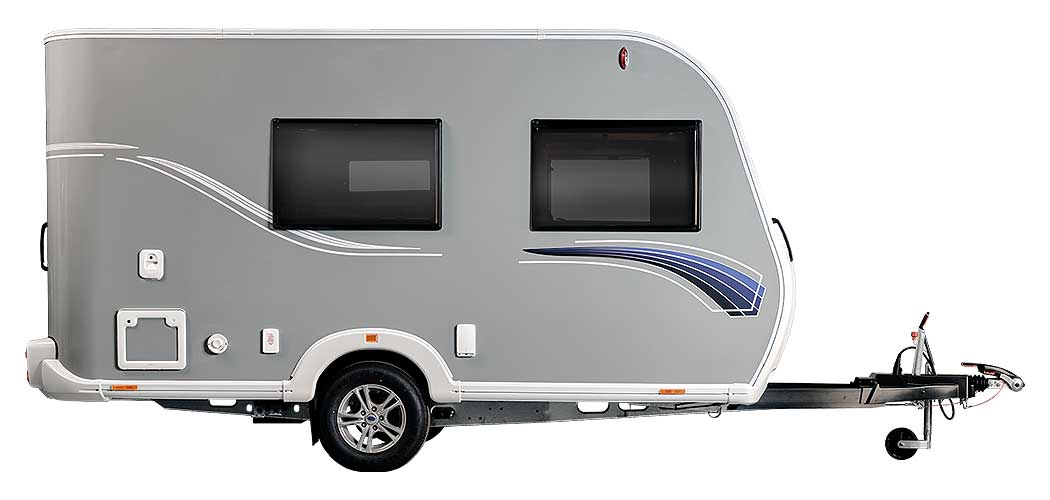

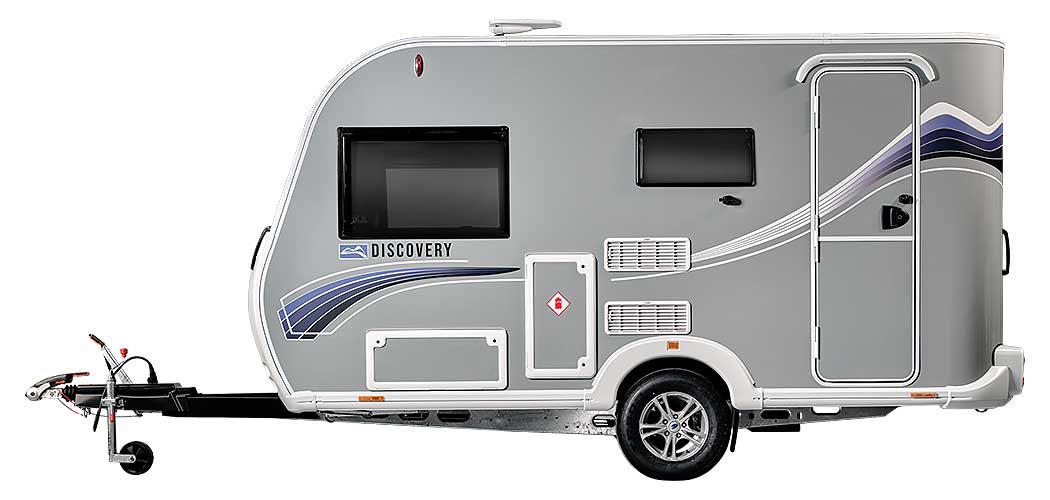

EXTERIOR FEATURES

• High performance GRP skinned duo-tone ‘Polar White’ and ‘Dove Grey’ Alu-Tech bodyshell
• AL-KO one-piece galvanised steel chassis, braking system and running gear
• Flush fit front and rear impact resistant bumpers with grab handles
• Aero-dynamic & aesthetically enhanced wrap-around rear bodyshell profile
• Extended a-frame suitable for optional bike rack
• NEW ‘Silver finish 14” TUV tested alloy wheels
• Aerodynamically profiled double glazed Polyplastic opening vertical front skylight and windows throughout
• Modern look branded front window with darker screen print and NEW interior light header
• Remis 2-part pleated flyscreen and blind to vertical skylight and Remis pleated flyscreen and blinds to principal windows
• Midi Heki roof light in main habitation area
• Hartal GRP skin two part large aperture exterior door with coat hook
• LED awning light with integral water management system
• Easy access exterior storage locker
• Centrally mounted easy-access gas locker for enhanced stability and reduced nose weight
• NEW Wrap-around graphics scheme

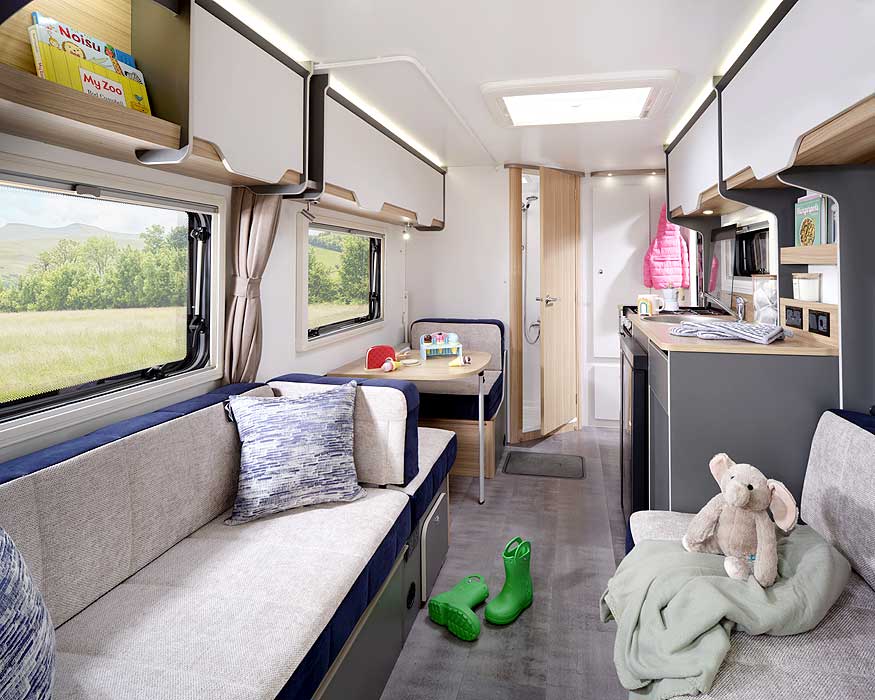

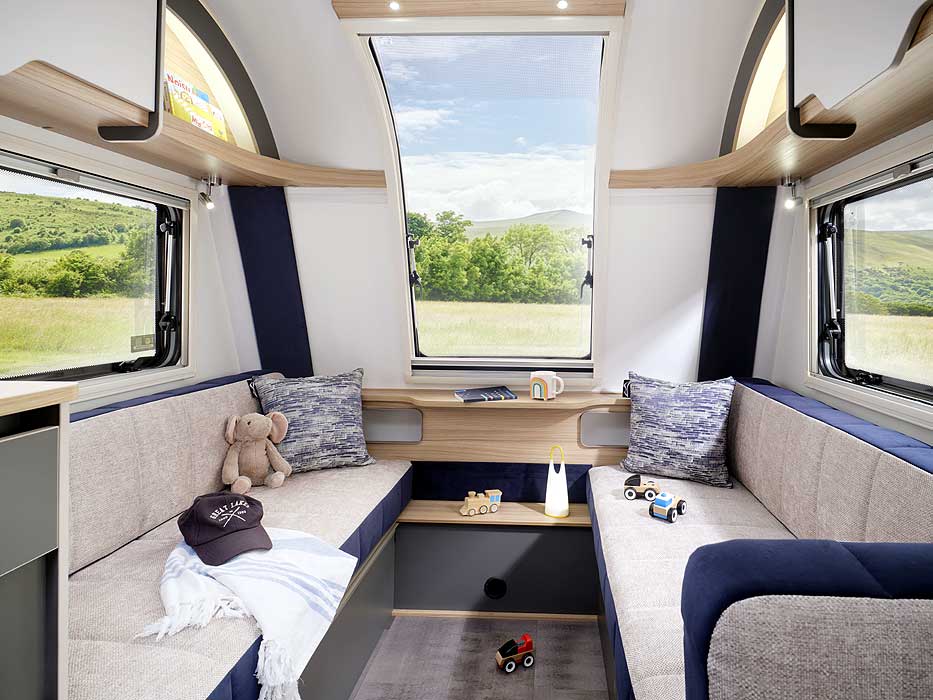

LIVING ROOM

• NEW Bailey ‘Light Oak’, ‘Satin Cashmere’ and ‘Anthracite’ furniture finishes
• ‘Satin Cashmere’ matt overhead locker doors with NEW ‘Light oak’ feature line and over-locker LED lighting
• Premium quality, domestic style fixtures and fittings in polished chrome finish
• ‘Light Oak’ finish freestanding table with dedicated storage
• NEW front shelf with storage pocket and cubbies
• Slatted front bed make-up system on easy glide track
• Beech slat seat bases with sprung hinged tops for extra comfort and ease of access
• Angled seat ventilation boards for enhanced heating efficiency
• Domestic style sofa seating featuring premium quality fabrics, sprung base cushions and foam back rests
• NEW ‘Apollo’ soft furnishings with two square scatter cushions
• Durable floor vinyl
• Entrance door mat

ENTERTAINMENT

• Status 570 telescopic directional digital television aerial
• One TV station with 230v, 12v and one aerial socket

BEDROOM

• Superior foam fixed bed mattress construction

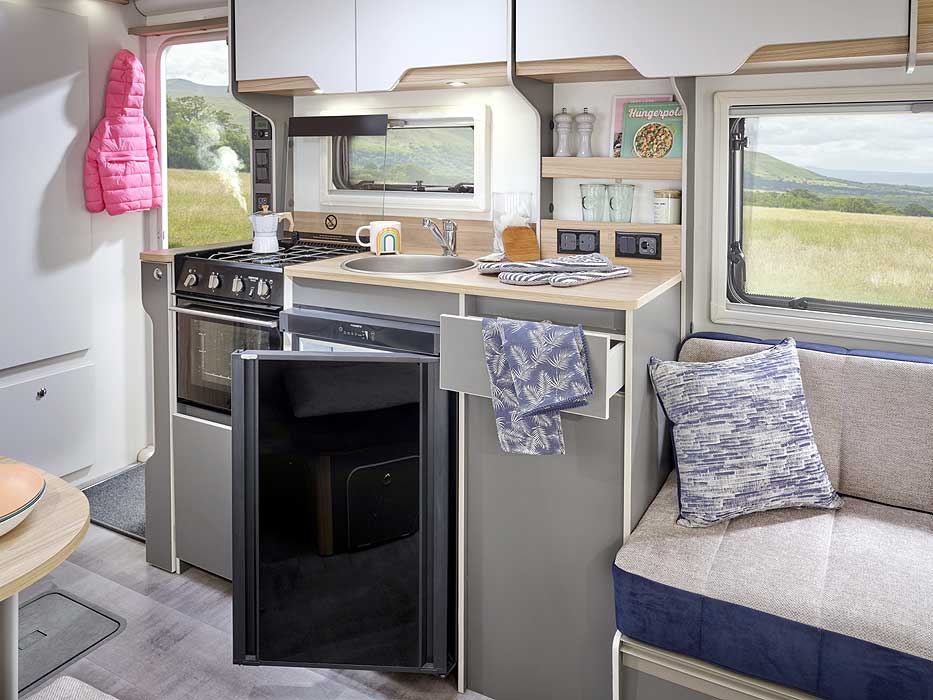

KITCHEN

• ‘Light Oak’ kitchen worktop laminate
• Stainless steel large round kitchen sink with concealed fixings and mixer tap
• Dometic 101 litre refrigerator and 12 litre freezer with high security travel lock
• Thetford Triplex combination oven and grill

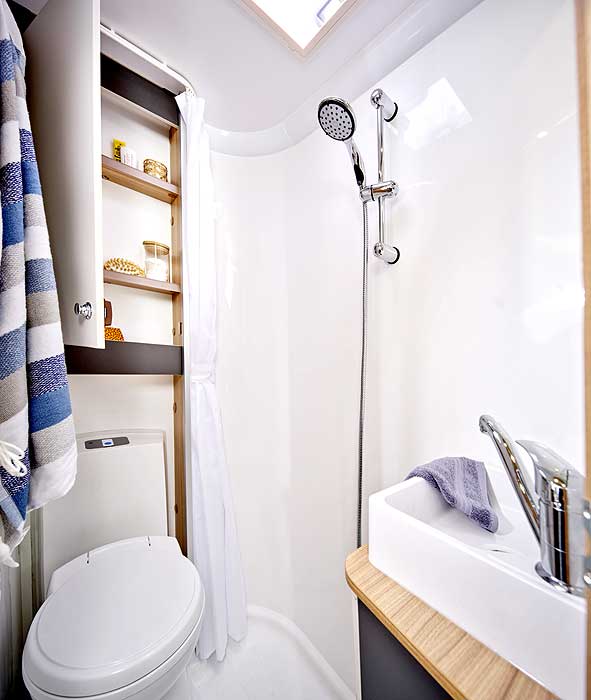

WASHROOM

• Solid domestic style washroom door with domestic metal handle
• Roof light located in washroom
• Inboard shower unit with ceramic ball mixer tap, Ecocamel shower head and NEW riser bar
• Bathroom storage cupboard
• NEW Belfast style washroom hand basin and mixer tap
• Thetford C-260 cassette toilet with integrated header tank

ELECTRICAL

• 230v power inlet for mains hook-up
• 12v internal lighting system including LED down-lighters and directional spotlights
• 230v power supply with up to four interior sockets
• Two USB sockets in directional spotlights
• NEW centrally located electrical control panel
• Centrally located under floor leisure battery storage locker
• Domestic style consumer unit
• Switch mode battery charger with 20 amp output
• RCD/MCB protection for mains electric system
• 25 metre mains connecting lead

HEATING & PLUMBING

• Truma Combi 2 heating system, combined water and room heating with dual fuel 2kw gas and 1.8kw electric power sources
• Truma user friendly digital control panel with adjustable fan and water boost functions
• Propane/Butane 30mb gas regulator in gas locker compartment
• Truma Ultraflow submersible pump
• Outboard rigid pipe waste plumbing system

SAFETY & SECURITY

• AL-KO AKS 3004 stabiliser
• WSL individually laser balanced wheels fitted with ‘Security’ tyres and anti-tamper WSL safety bolts
• Interior floor mounted spare wheel and tyre ( steel wheel )
• High security one key operation throughout
• CRiS identity number anti tamper labels attached to windows and inside gas locker
• Concealed security data chip within caravan construction
• Smoke alarm
• Carbon Monoxide Alarm
• European Whole Vehicle Type Approved to be European Standard compliant and certified by the National Caravan Council

OPTIONAL EXTRAS

• ‘Willow Grey’ Split section loose fit drop in carpet
• Full length door flyscreen
